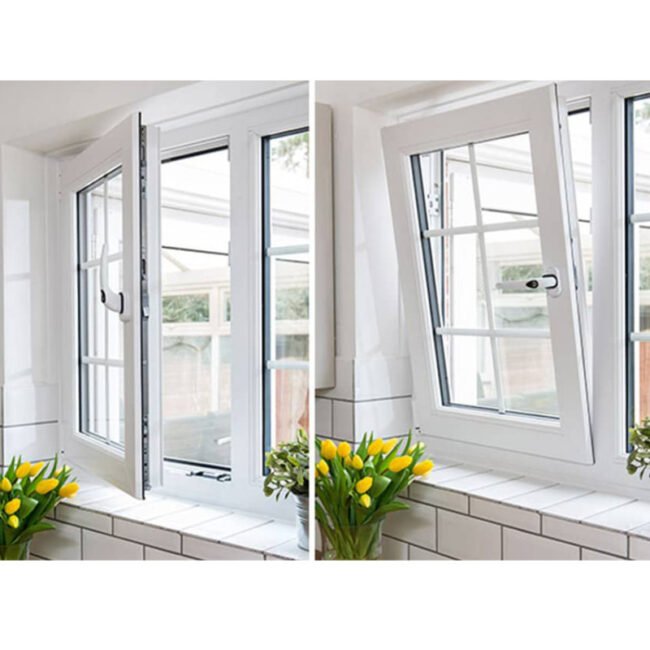

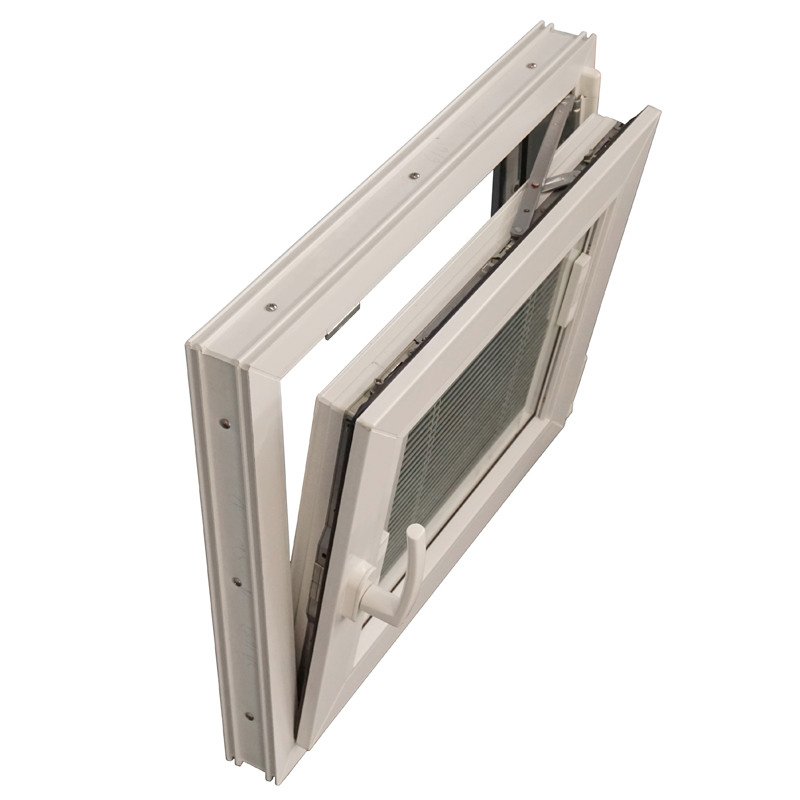

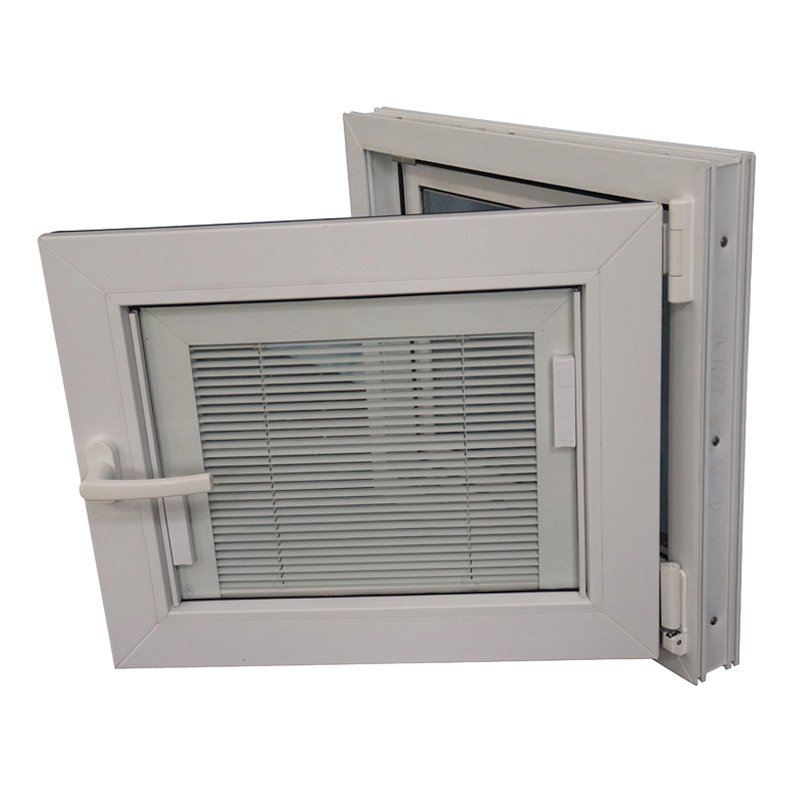

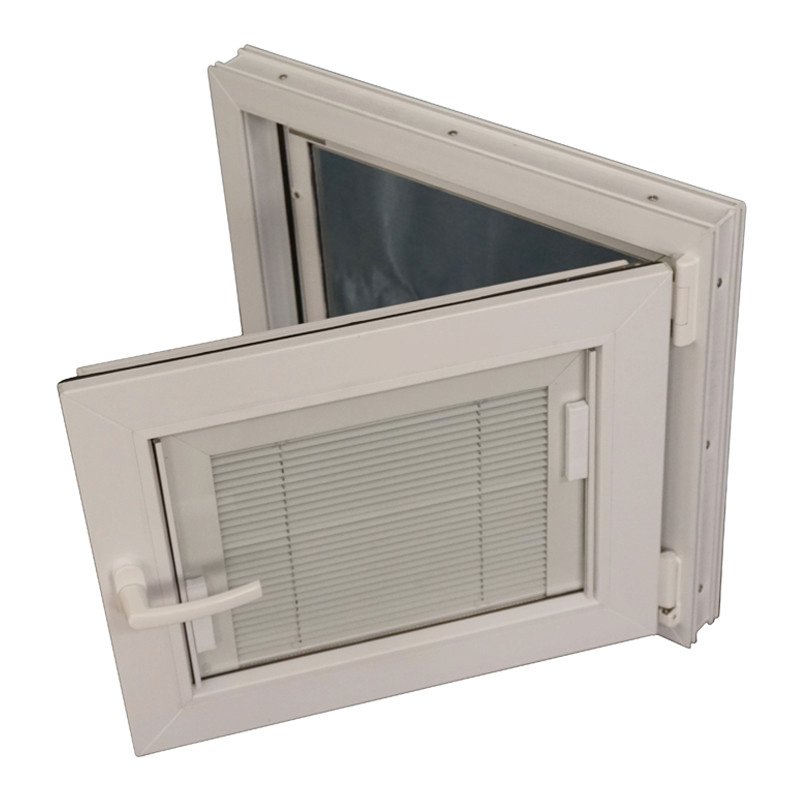

Tilt and turn windows have been a popular choice of window in many countries for some time. There are many advantageous properties of tilt and turn windows that explain this success. Typically a quarter turn of the lever will allow the window to swing inwards like a casement window. A second quarter turn will allow the window to tilt inwards from the top.

• 450Pa

  Water Pressure

• 4000Pa

  Ultimate Wind Pressure

• 1.7

  U Value

• 0.28

  SHGC Value

Colored Profile :

RENOLIT high-performance films for UPVC profile exterior applications to make the window finish look like solid wood.

Corner Sample :

Multi-chambered frame and sash extrusions for super strength and insulating properties

Reinforcement steel inside the chamber for supporting.

Lead free profile- Energy saving and UV protection.

Hardware :

Heavy duty hinge with 304 stainless steel for maximum durability.

Multi-point stainless steel locking device for enhanced security.

Possible Tilt and Turn Window Configurations :

Tilt and Turn window can be designed with fixed window combined.

One panel tilt and turn window opening width should be limited in 1200mm, the window height is better smaller than 1800mm for maximum using experience and durable.

If the tilt and turn window width bigger than 1200, we suggest double panel in tilt and turn or one panel tilt and turn with fixed panel.
